Pulse Width Modulation (PWM)

I will talk about what is pulse width modulation (PWM), how this technology is useful to electronics and robotics projects and how to use it.

Why use PWM?

Exist situation where is needed control the power of a load which can be a DC motor, a relay, a lamp, etc. It is possible to control linearly a load using a potentiometer or a rheostat.

The problems with this type of control are the loss of torque in lower speed in case of DC motors and the loss of power due to the potentiometer’s resistance. The PWM can give soft start in motors and keep the torque in lower speeds.This technique is also used to control servomotors and dimmers (lamp controllers).

How it works?

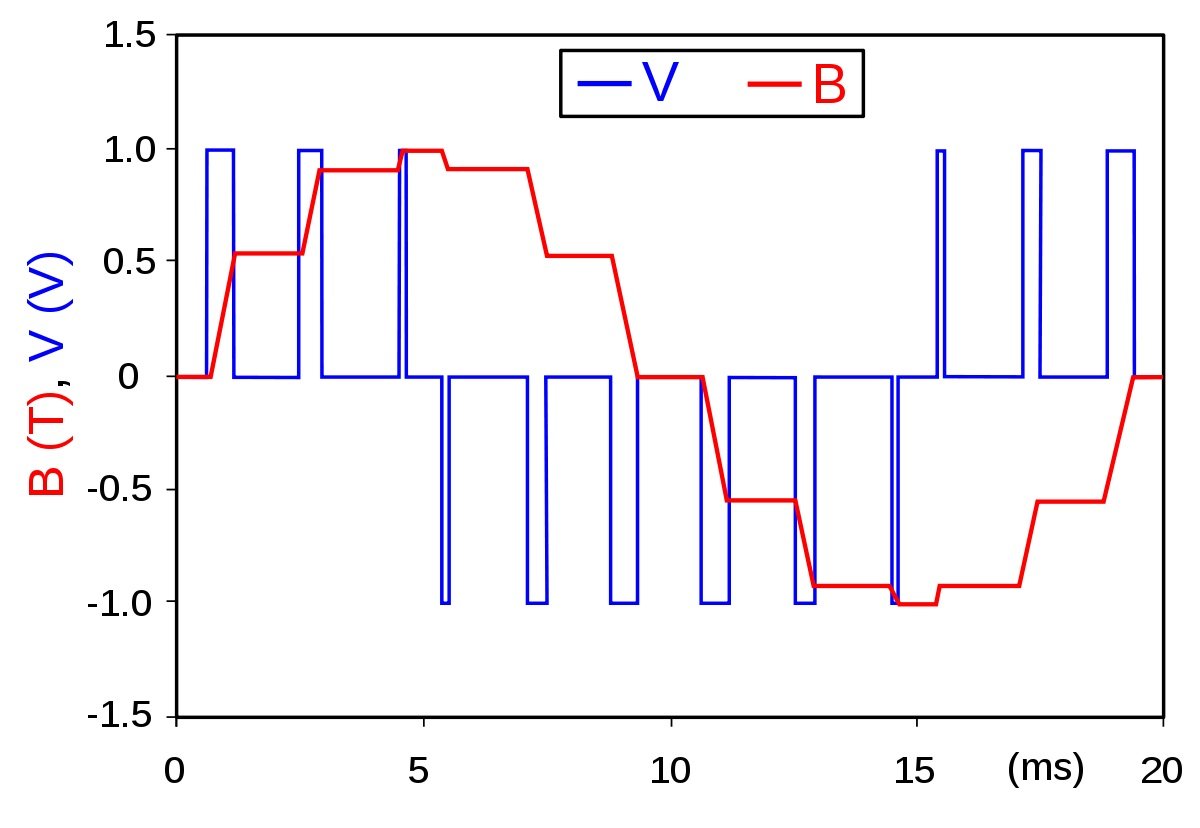

A PWM signal works like a switch turning on and off constantly, it is a continuous square wave. The signal’s amplitude will always be constant, therefore the DC motor will always have the maximum torque. Since part of the time there is no current in the load, the efficiency is greater. You can control the width of the pulses in the signal.

There is a parameter called duty cycle which says how long there is current in the load. Calculating the duty cycle in %, which is width pulse per the wave’s period.

DutyCycle=100\cdot\frac{Largura}{Período}

Some wave’s duty cycle.

Altering the pulse’s width also change the average voltage. If a signal has 50% duty cycle, the average voltage will be half of the amplitude’s value.

PWM generators circuits

You can generate a PWM signal with a 555. To know more about this component click in the button below:

555 555Click here



This is an example of circuit which control the pulse’s width with a potentiometer.

The circuit assembled in a protoboard.

Calculating the time when the signal stays in the “ON” level:

T_{H}=0.693\cdot R_{a}\cdot C1

  • R_{a} is the value of the resistance from pin 8 to the middle terminal of the potentiometer.

The time when the signal stays in the “OFF” level:

T_{L}=0.693\cdot R_{b}\cdot C1

  • R_{b} is the R2 value plus other side of the potentiometer until the middle terminal.

The period is the sum of the 2 times. Below we have another example of PWM generator circuit.
