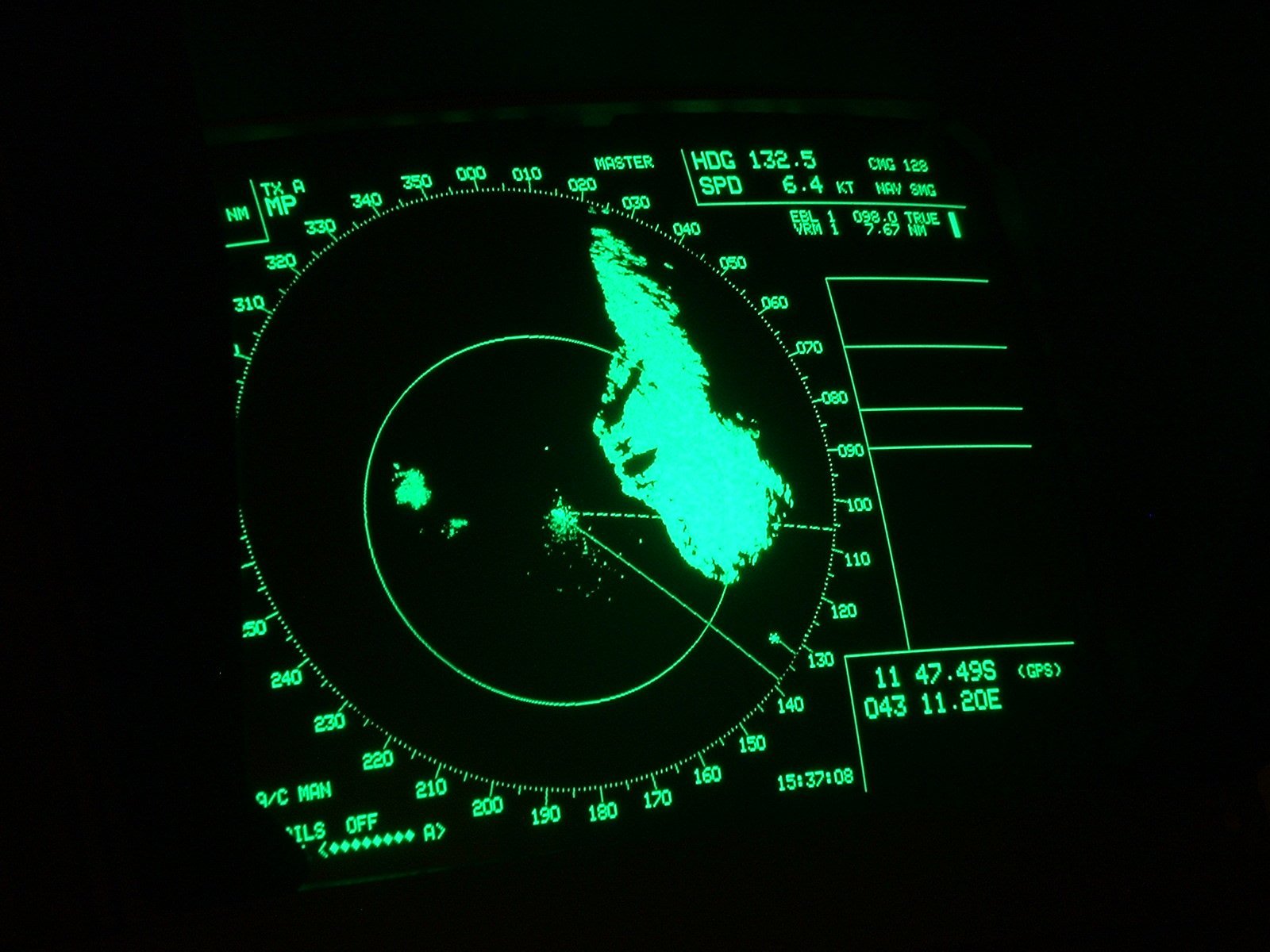

How radar works?

Radar is the abbreviation of radio detection and ranging and is this post`s subject. Has applications in traffic, aviation, weather forecast, navigation, research, rescue, inspection and maintenance of infrastructure and detection of enemy targets.

Working principle

The radar transmits radio waves, an object receives the wave and it returns to the radar`s receiver.

[WPGP gif_id=”6616″ width=”600″]

The time t between the wave emission and reception is used to determine the distance d.

d=c\cdot \frac{t}{2}

c is the light speed which values 3\cdot 10^8 m/s. The radars also use the Doppler effect to measure the object`s speed, when an object which emits or reflects a wave approach, the wave`s frequency increase in relation to an observer. When it goes away, the frequency decreases.

The formula to calculate the Doppler effect.

f_d=f\frac{s\pm s_D}{s\pm s_S}

Where f_d is the frequency saw by the detector, f is the frequency emitted by the wave, s is the wave speed, s_D and s_S are the speeds of detector and source respectively. Active radars transmit and receive the signal, while passive radars depend on the signal emitted by the object.

How to transmit and receive?

In the transmission, the signal is modulated and transmitted in high power. The radars use oscillators with magnetron valve to produce the waves. Click in the button below to access the post about micro wave oven and see how the magnetron works.

Micro wave ovenClick here

There are alternatives to magnetron, like Helix travelling wave tube, Klystron, extended interaction oscillator, etc. However, it is needed a post to talk about how does each one work. The receiver usually is a superheterodyne which must amplify, filter and convert the signal in digital form to be processed. And then, extract the data to be shown on display. This is the radar range equation.

R_{max}=\sqrt[4]{\frac{P_S\cdot G^2\cdot \lambda^2\cdot \sigma }{P_{Emin}\cdot (4\pi)^3\cdot L_{ges}}}

Where,

  • R_{max} is the maximum range;
  • P_{S} is the transmitted power;
  • G is the antenna gain;
  • \lambda is the wavelength;
  • \sigma is the radar cross section in m^2;
  • P_{Emin} is the minimum power detected by radar;
  • L_{ges} is the loss factor, including losses by fluctuation, by atmosphere and attenuation.

Pulsed wave radar

There are two types of radar: continuous wave and pulsed wave. The pulsed radar emits radio wave pulses, has only one antenna, is subjected to jamming and can provide range and altitude.

[WPGP gif_id=”6625″ width=”600″]

Below we have the block diagram.

The duplexer is a circuit which makes the switching between transmitter and receiver avoiding one interfering in another.

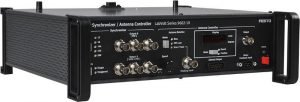

The synchronizer regulate pulses transmission rate and coordinate the system operation time to measure the range.

Continuous wave radar

This type emits continuously a wave. Needs two antennas, is more resistant to jamming and has a higher signal-noise rate (SNR), which determines how much the signal is stronger than the noise.

[WPGP gif_id=”6616″ width=”600″]

Can`t provide an accurate range measure, unless it has frequency modulation. Detect motion by Doppler shift.

This is the block diagram of this type of radar.

The discriminator is the opposite of the mixer, has the function to separate the signals by frequency and phase.
